Приложение:

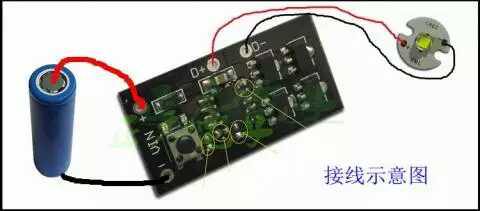

За захранване на мощни светодиоди с напрежение 3-5V и ток 2.8А CREE XM-L/XM-L2 U2 U3.
За вграждане в мощни прожектори.Пет режима на работа 100%/60%/30%/10%/SOS/Strobe

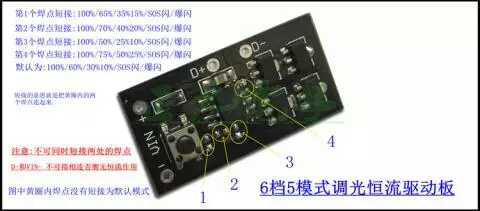

При различни комбинации на окъсяване на посочените контактни площадки се получават следните варианти:
1. short between both solder point in are 1 100%/65%/35%/15%/SOS/Strobe
2. short between both solder point in are 2 100%/70%/40%/20%/SOS/Strobe
3. short between both solder point in are 3 100%/50%/25%/10%/SOS/Strobe
4. short between both solder point in are 4 100%/75%/50%/25%/SOS/Strobe
5. default (not short any area) 100%/60%/30%/10%/SOS/Strobe

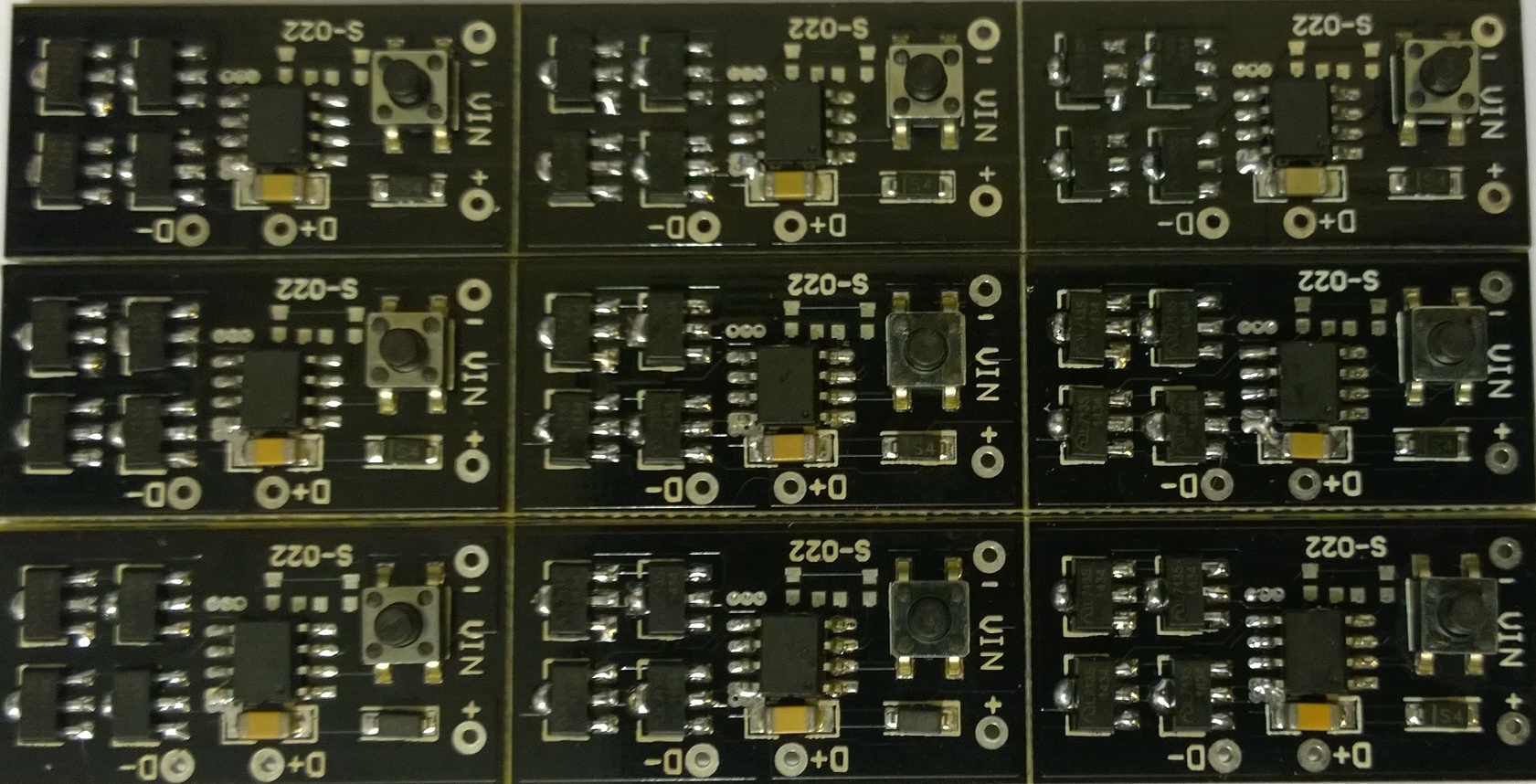

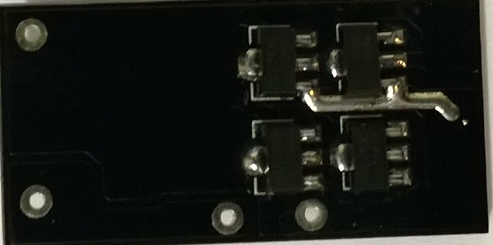

8pcs 7135 constant IC
5 types of regulation model switch -

6 type of dimming LED driver -


Захранващо напрежение - DC3.5-5.3V
Изходен ток - max2.8А
Размери - 31x15
